Development Photos
|
New parts from TI! |
|
Testing out the ADC on the MSP430 and mibSPI on the Hercules |
|

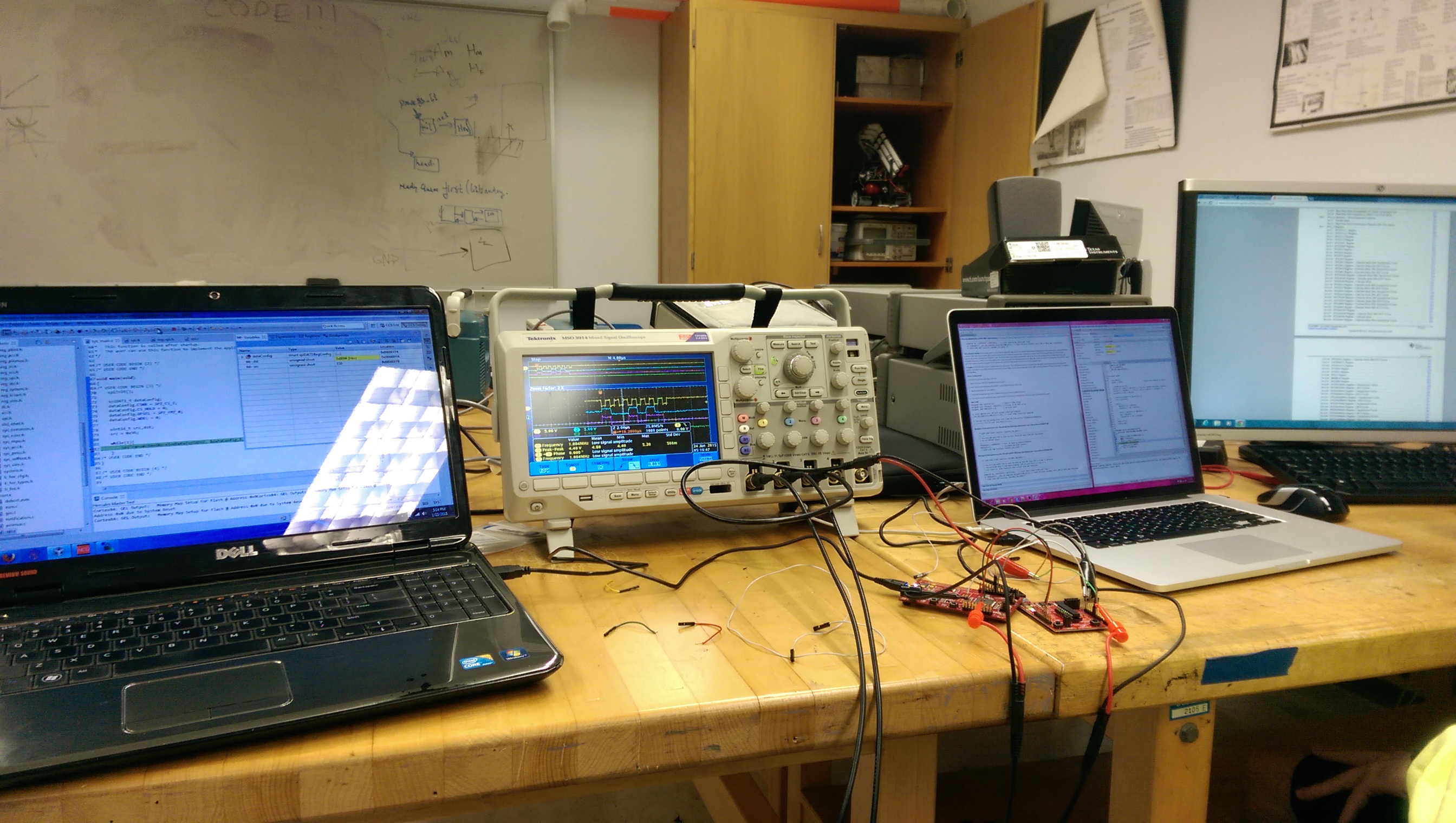

Had to pull out the scope |
|

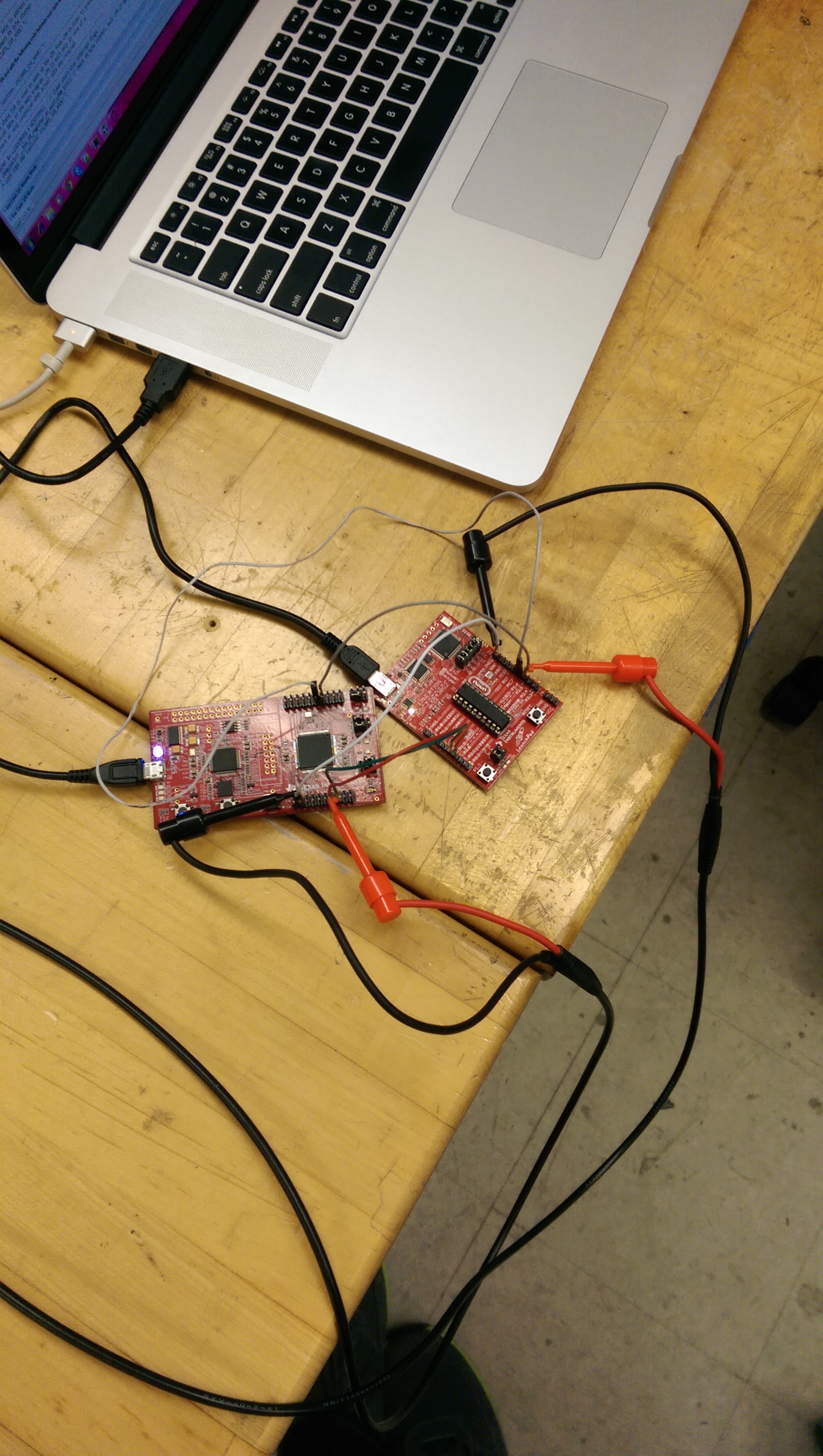

Debugging the SPI connection between the Hercules TMS570 and MSP430 |
|
Configuring the Raspberry Pi |
|
Setting up the new 12v display |
|
Connecting the XBee to the Raspberry Pi |
|

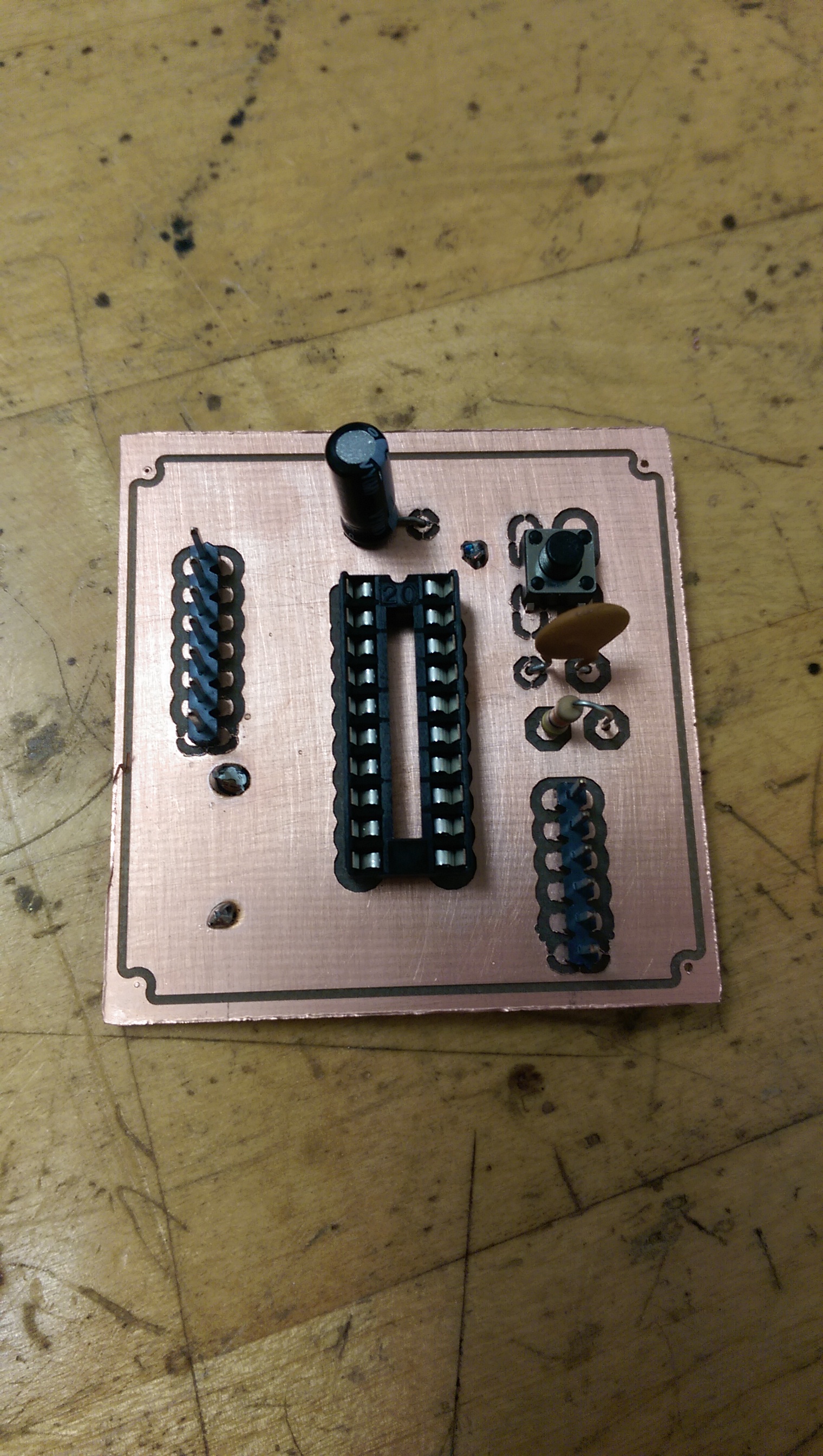

Milled MSP430 Sensor PCB |
|

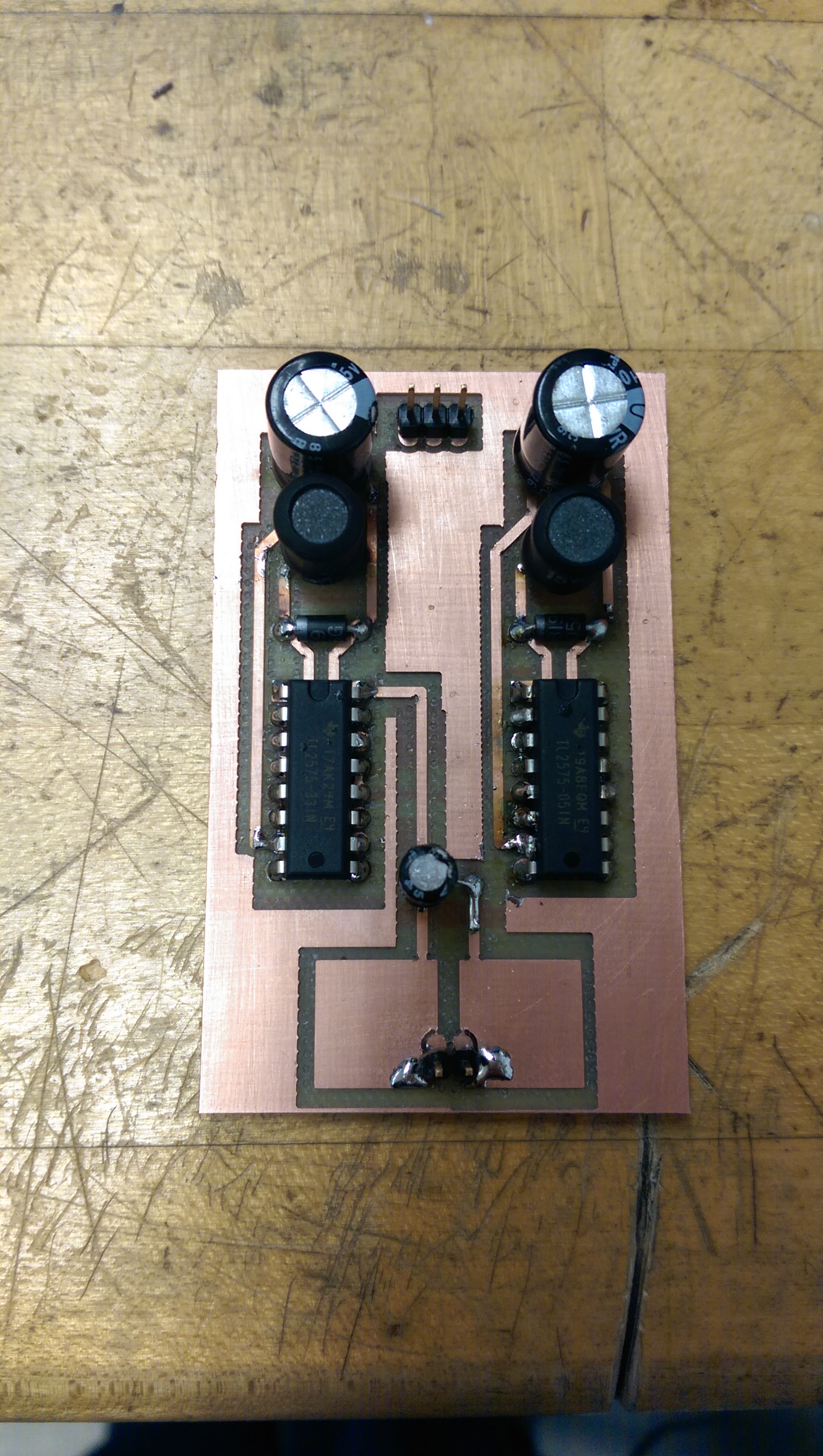

Milled TL2575 Power regulation PCB |
|
Testing newly milled PCBs |
|
Testing newly milled PCBs |
|
Sample DAQ data log taken from the LSM303 accelerometer |
