Group working and assembling.
Design parts and assemblies.
After designing the system, the parts were machined and assembled. The pictures below show the final assembled system.
|
Group working and assembling. |
||||
|
|
|
|
|

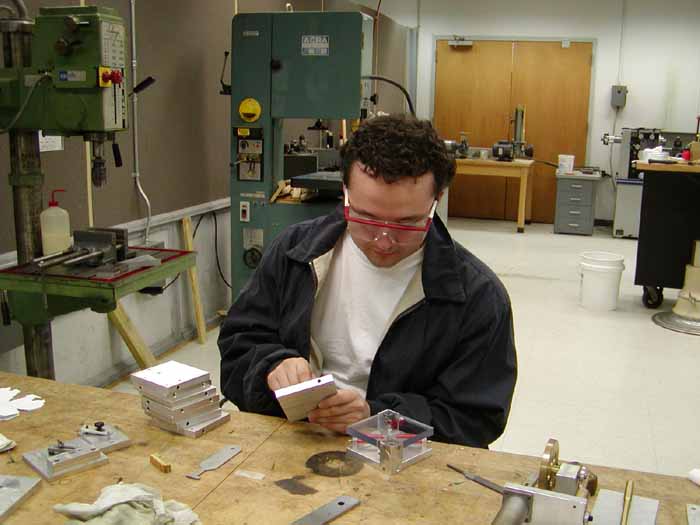

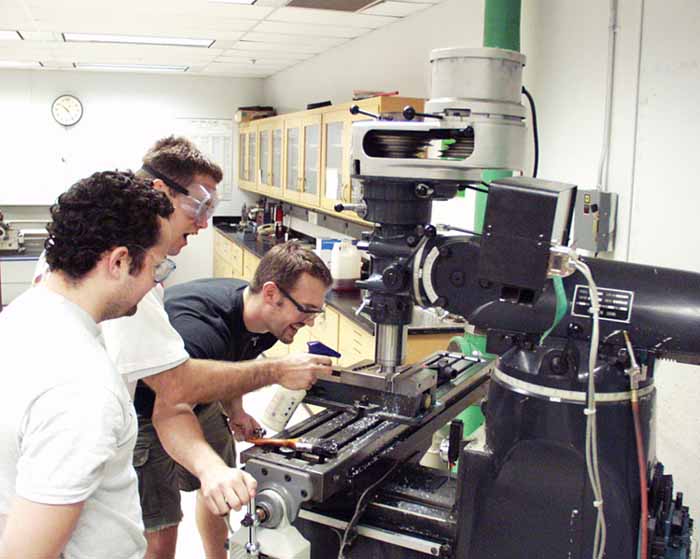

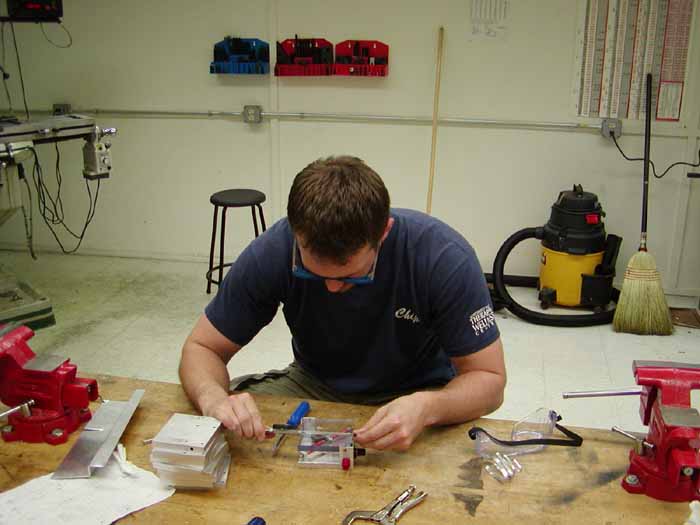

| Group machining paddle | Rey & Philip machining base plate | Philip measuring Plexiglas cover | Grant making . . . it look like he's busy | Rey tuning ratchet device |
|
|
|||
| Rey working on the 'mass production' of the base plate | Grant assembling parts (with extra eye protection) | |||
|
Design parts and assemblies. |
||||
|
|
|
|
|

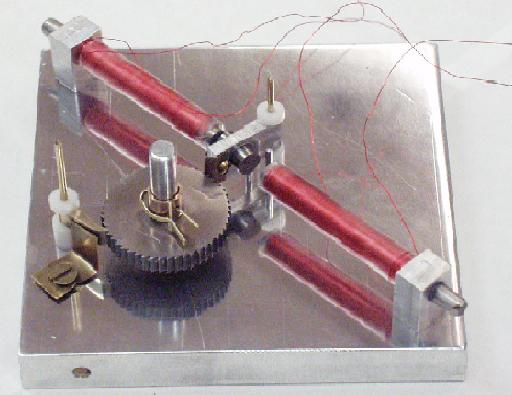

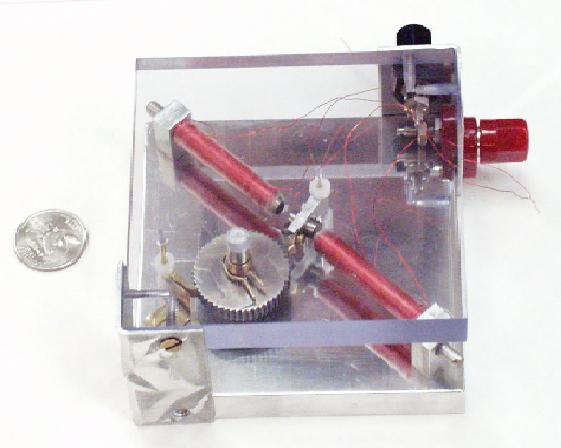

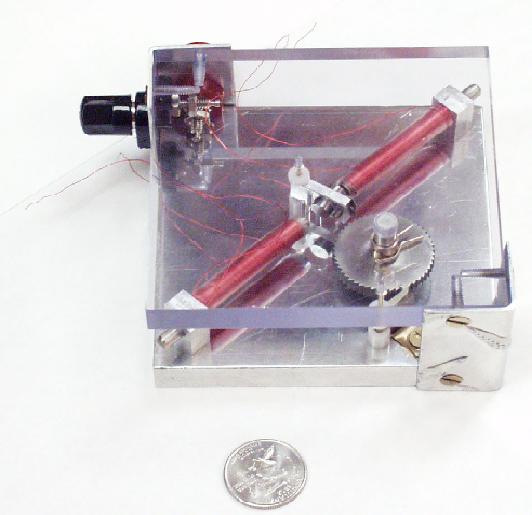

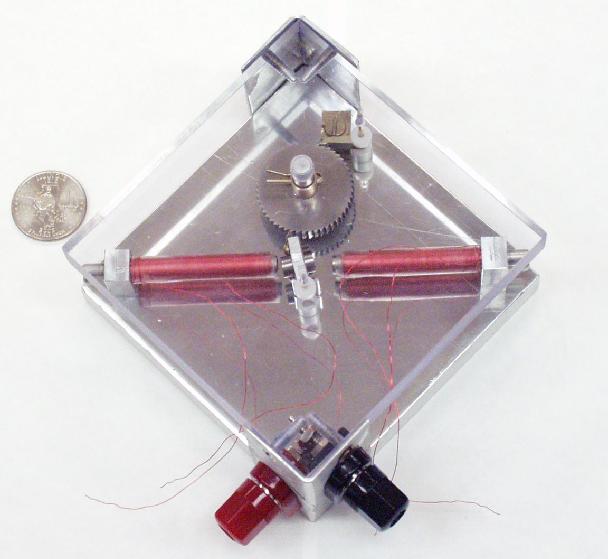

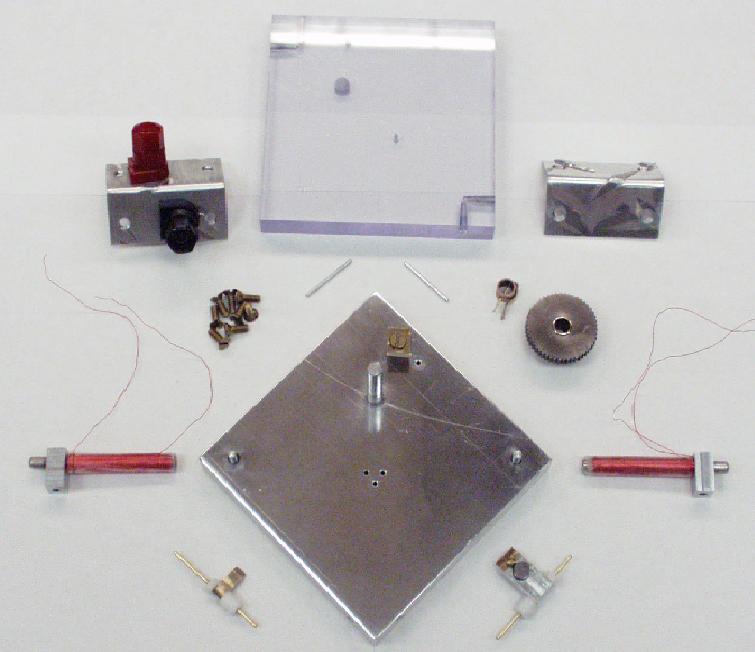

| Before assembly | Entire assembly with cover attached and positive/negative terminals installed | Assembly (minus cover) | ||
|
|
|
|
|

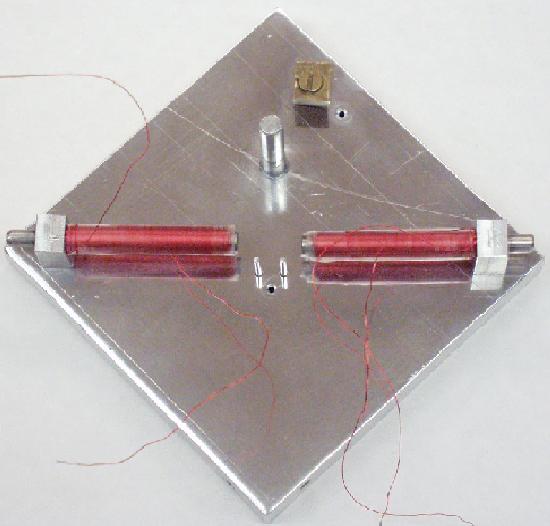

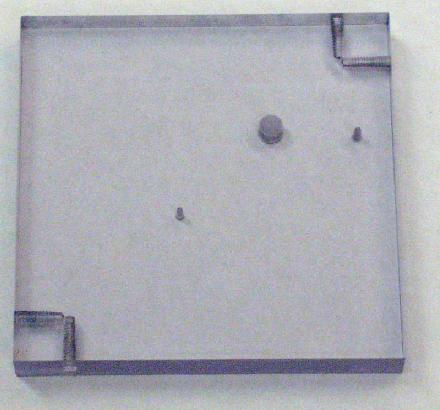

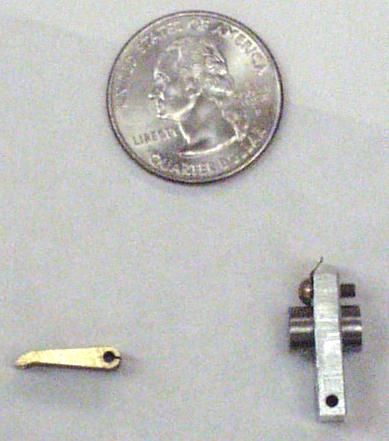

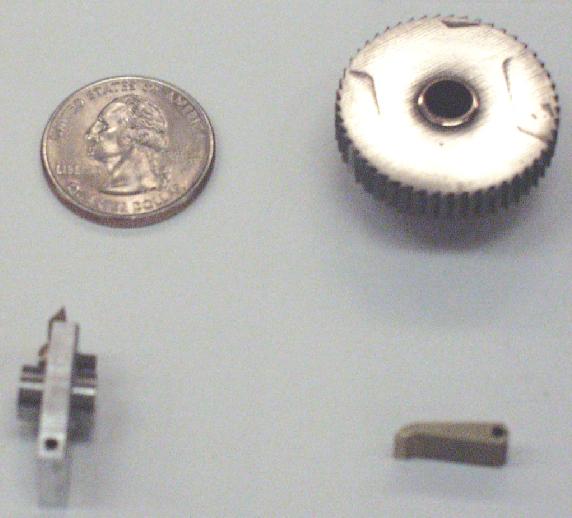

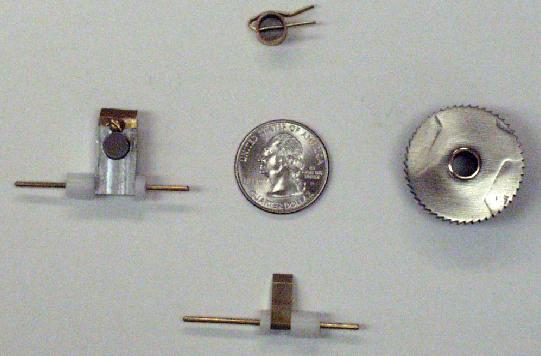

| Stopper pins and electromagnets | Plexiglas cover | Pawl (left), paddle (right), quarter (hmm . . .) | Pawl, ratchet wheel, and paddle | Pawl and paddle mounted on shafts, ratchet wheel, clip for ratchet shaft |
|

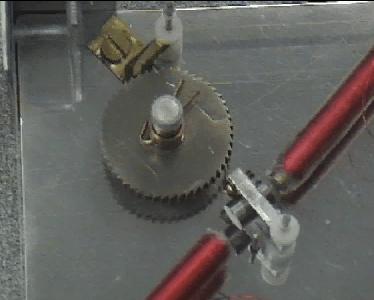

Click on the picture to the right to see a short video showing the motion of the paddle and ratchet wheel. (File size: 13.3 MB; Requires QuickTime Player) |
|
