Abstract

Breast cancer is a major global health concern, requiring early detection for better outcomes. The TIMM project is a proof-of-concept prototype using thermal imaging to study breast health. It features infrared sensors, an adjustable camera, and a user-friendly interface to analyze heat distribution. While not for diagnosis, it evaluates design feasibility, usability, and imaging accuracy.

Introduction

Early breast cancer detection improves survival rates, but cost, accessibility, and discomfort limit screenings. TIMM is a non-medical proof-of-concept exploring thermal imaging for breast health research. Using infrared cameras, it analyzes heat patterns to assess its potential as a screening aid. While not a diagnostic tool, TIMM offers insights into healthcare applications, prioritizing privacy, ease of use, and portability.

Senior Design Phase I

Senior Design 1: The first phase of the TIMM project focuses on research, concept development, and initial prototyping. As a proof-of-concept, the priority is technical feasibility, privacy, and ease of use. Key tasks include researching infrared imaging and breast health monitoring, brainstorming design approaches, creating CAD models, and selecting sensors for optimal thermal accuracy. The team also emphasizes user experience and privacy while documenting progress through the Work Breakdown Structure (WBS), Functional Decomposition, and Concept Selection Reports. By the end of this phase, a finalized design concept is ready for prototyping. Click the hyperlink to see our progress!

Senior Design Phase II

Senior Design 2: This phase shifts to fabrication, testing, and validation. The team builds a functional TIMM prototype, integrating infrared sensors, a height-adjustment system, and a digital interface. Through iterative testing, the system is refined for accuracy and usability, bringing it closer to a practical solution.

Features of the Design

  1. Portable & Compact
  2. Automated Camera Positioning
  3. Full Size Module
  4. Thermally Regulated

Design & Build Gallery

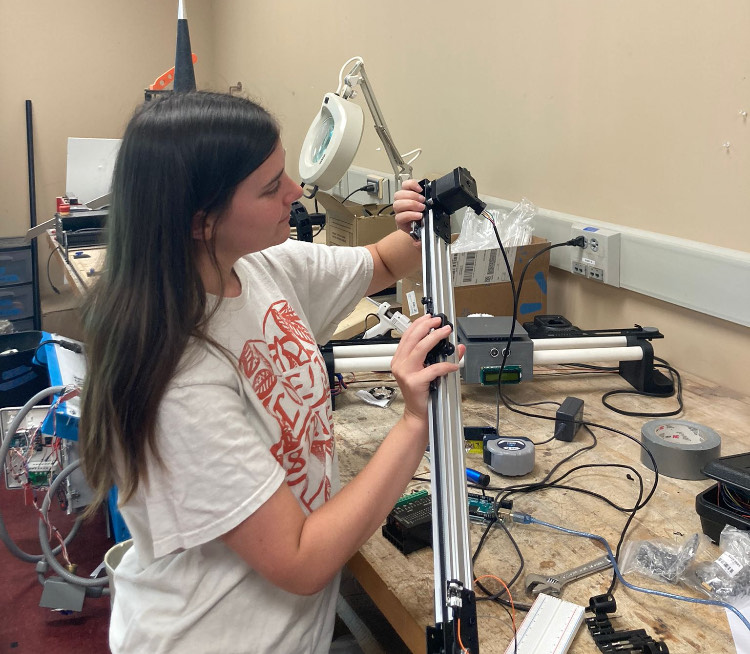

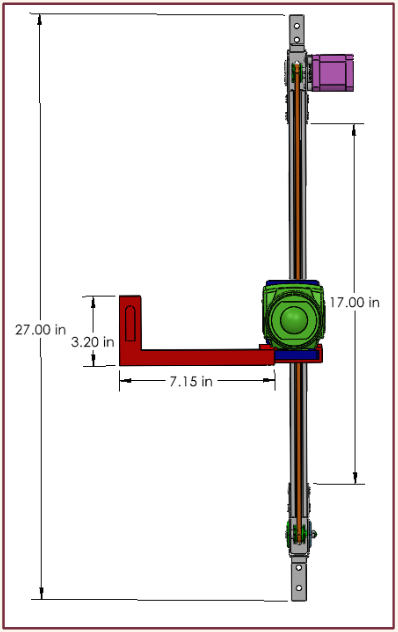

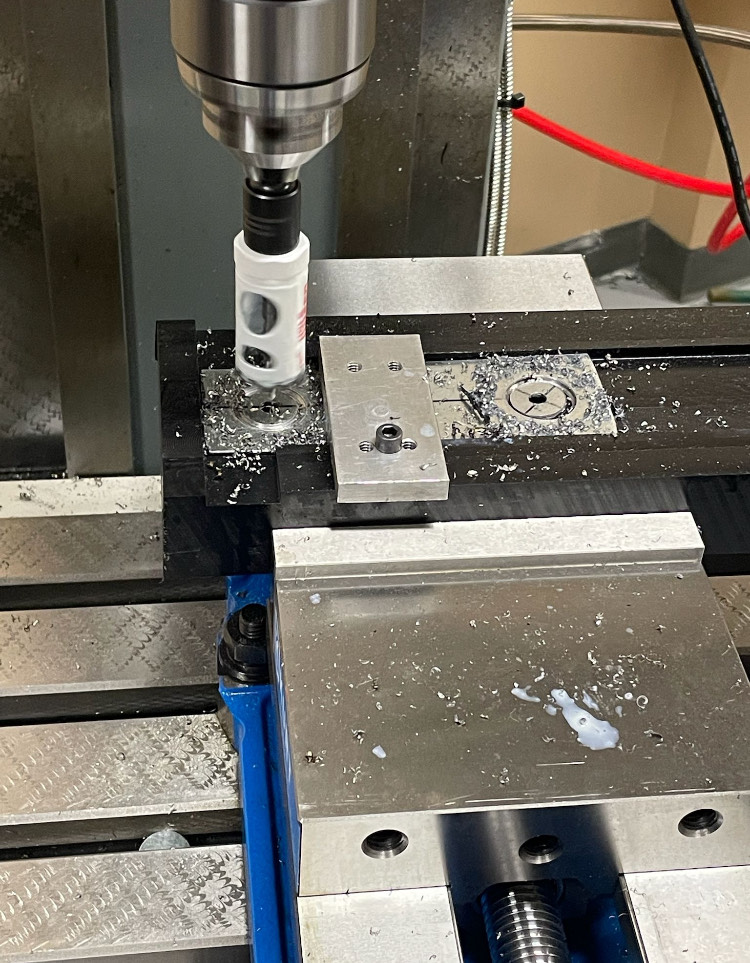

Here you can explore the evolution of the TIMM project through our Design & Build Gallery. Please click on each image for a better look especially when using mobile devices. From early CAD models and system layouts to hands-on prototyping and testing, these photos will showcase the development process. See how our team refined sensor integration, mechanical adjustments, and user interface design to create a functional prototype.

Contact

Have questions or want to learn more about the TIMM project? Email aew22m@fsu.edu, and your message will be sent directly to the project lead. We’ll get back to you as soon as possible!
