5.9.4

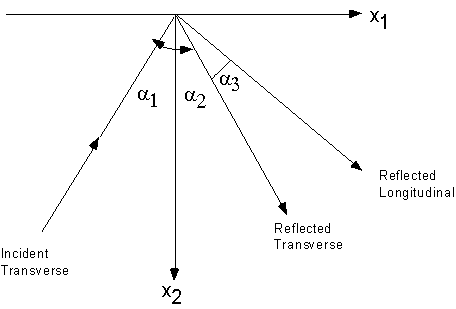

If a single transverse wave is incident on a free surface, it produces two waves as shown below.

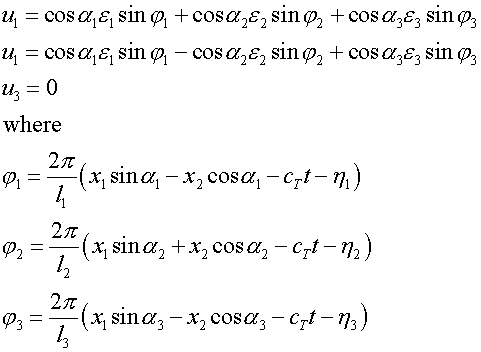

With all the three waves we have
From traction free boundary conditions,
and the equilibrium conditions we can show that
This concludes Chapter 5 (elastodynamics) and the course content for EGM 5611.
