Music and Sound Waves
All material substances
are comprised of atoms, which may be forced into oscillations about their
equilibrium positions. Many different patterns of vibration exist at the atomic
level and acoustics is focused on particles that contain atoms that move in
unison to produce a mechanical wave. When the particles of a medium are
displaced from their equilibrium positions, internal (electrostatic)
restoration forces arise. It is these elastic restoring forces between
particles, combined with inertia of the particles, that produces oscillatory
motions of the medium. In air, sound travels by compression and expansion of
air molecules in the direction of travel. The oscillations occur in the
direction of the propagation and since compressive and expansive forces are
active in these waves, they are also called pressure or compression waves. In
some instances they are called density waves because their particle density
fluctuates as they move. Compression waves can be generated in liquids, as well
as solids because the energy travels through the atomic structure by a series
of compression and expansion movements.
Sound Wave Propagation
Animation
Sound waves have three
properties, the speed in which they travel, their amplitude and frequency. The
arrangement of these characteristics is key to understanding the phenomena
associated with them. The speed of sound in air is temperature dependant and is
given by the following relationship,
(1)
where c is the speed of sound P is pressure
and is the density. For
an ideal gas the relationship can be extended so that the product of the
pressure and specific volume is equivalent to the product of the gas constant R
and the temperature T. This relationship is maintained when the pressure
increase propagates through the medium, similar to the domino effect. The
density of the medium increases, keeping the ratio constant. Sounds are
characterized by their volume, which is the amplitude of the pressure
disturbance, and their pitch or the frequency of oscillation. The volume of
sound waves is commonly denoted in units of decibels where the decibel is given
by,
(2)
The reference pressure is the smallest

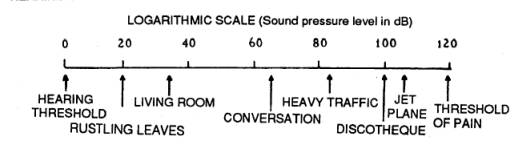

audible pressure wave amplitude distinguishable by the human ear. The following
figure shows the amplitudes of sounds encountered by most people to give an
intuitive reference for the decibel unit.
