3 7.28, §3 Boundaries

• Get rid of the boundaries by imagining that the pipe extends from $-\infty < x <\infty$
• To do so, we must extend the initial conditions $f(x)$ and $g(x)$ to all $x$. Call the extended functions $\bar f(x)$ (or $F$) and $\bar g(x)$ (or $G$).
• The extended functions should make the given boundary conditions automatic.

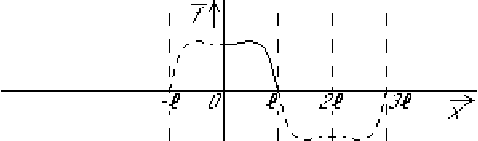

To make the boundary condition $u_x=0$ at $x=0$ automatic, create symmetry around $x=0$ To make the boundary condition $u=0$ at $x=\ell$ automatic, create antisymmetry (odd symmetry) around $x=\ell$.

$$\hbox{\epsffile{figures/3.ps}}$$

$$\hbox{\epsffile{figures/4.ps}}$$

$$\hbox{\epsffile{figures/5.ps}}$$

$$\hbox{\epsffile{figures/6.ps}}$$

$$\hbox{\epsffile{figures/7.ps}}$$

$$\hbox{\epsffile{figures/8.ps}}$$

Create the extended function $\bar g(x)$ or $G$ the same way.
